Zoom95 Robotic Total Station

SKU: 6017105
Non-prism Range - A5(500m) A10(1000m)
Angular Accuracy
£16,995.00

Visit our Download page for product brochures and technical specs.

Click here for Downloads

Have a question? Need more information?

Send a message via the Contact Page

or give us a call on +44 (0)28 9262 9695

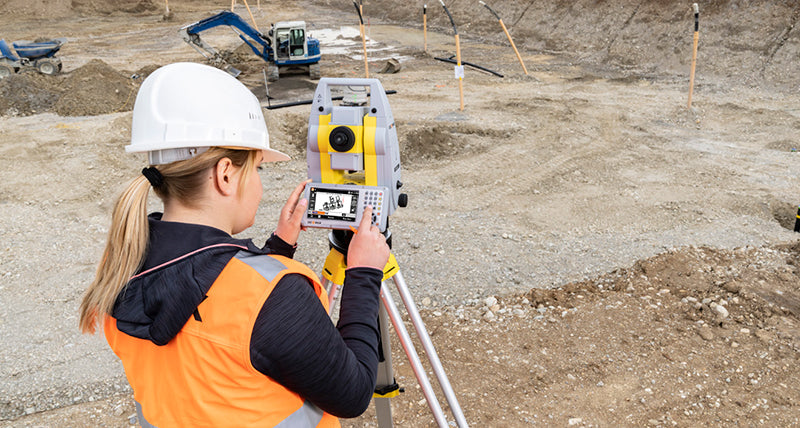

The Zoom95 is the true flagship of the GeoMax TPS portfolio. Featuring advanced STReAM360 technology, this one-person total station substantially minimizes the time of any survey task and maximizes your performance and accuracy. Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitizing your construction site.

Modern data handling ▪ Large 5″ VGA touch screen ▪ Powerful processor - easy & fast handling of big files ▪ Automatic data backup ▪ Scout: Quick search for passive prisms within a large area

Maximum flexibility ▪ Field software: X-PAD Ultimate Survey or Build on Android, X-PAD Survey or Construction on Windows Mobile ▪ Field controllers: GeoMax’ or your own device

Smart Investment ▪ No maintenance cost for field software ▪ Latest Hexagon technology ▪ Stress-free equipment: PIN/ PUK – anti-theft feature


Fully Robotic

With the STReAM360 technology, the Zoom95 easily and quickly finds, locks and traces the prism:

  • Scout: Vertical laser fan is emitted from the rotating instrument. As soon as reflections from a prism are received, the Zoom95 accurately aims towards this prism.
  • TRack: The target is being continuously tracked. Once locked onto, the instrument remains accurately aimed even on fast moving targets.
  • AiM: The Zoom95 aims accurately at any prism, without the need to look through the telescope.

    What's Included:

    918656 Zoom95 Fully Robotic WinCE Total Station with AiM360, TRack360 and Scout360, 5", accXess5 EDM, NavLight, alphanumeric keyboard with VGA colour & touch display, Long Range Bluetooth Handle interface, internal Bluetooth, USB port, SD Card slot, Quick Guide and shipping case. 1
    855818 ZMS108 USB Memory Stick 8GB 1
    776093 ZBA400, Li-Ion Battery 4.4Ah 2
    766872 ZCH201 Charger for ZBA201 & ZBA400 Li-Ion batteries 1
    765617 ZTR101 Standard Tribrach without optical plummet, black 1
    834473 ZRT82, Long-Range Bluetooth Handle for GeoMax Zoom70/75/90/95 total station 1
    832680 ZRP1, 360° prism with ruggedized rubber caps 1
    807159 ZPC201 Telescopic Carbon Fibre and aluminium pole with stub for TPS, extends to 2.3 m 1
    794088 ZDC301 USB cable Mini-USB to USB Host (Zipp10/Zipp20/Zoom40/Zoom90/Zoom95 to a PC/Tablet) 1
