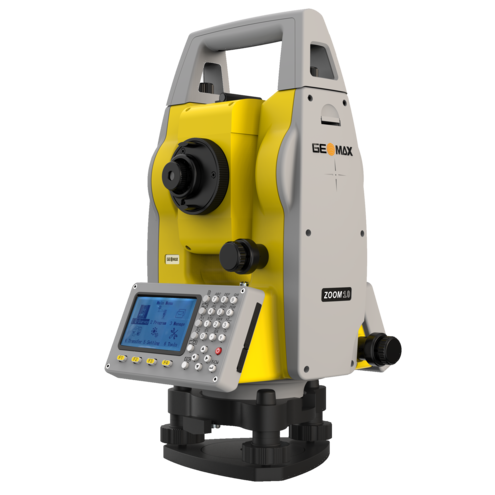

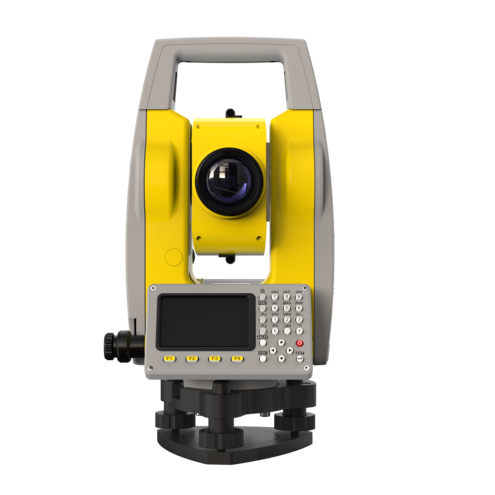

Zoom10 Reflectorless Manual Total Station

The GeoMax Zoom10 is the most efficient, simple and affordable manual total station among all entry level TPS because of its easy to handle onboard software - ideal for construction surveying.

Main Features:

• Bluetooth wireless technology allowing real-time communication with X-PAD Android
• Multiple data transfer options including SD card and Micro-USB port
• Adjustable backlight to screen and keyboard offering visibility under any environment
• Dual-axis compensator allowing auto error elimination and accuracy compensation
• Data storage upto 20,000 points in ASCII format
• Easy onboard software

Technical Specifications:

• 2" angle accuracy
• Distance measurement to prism - 3000m
• Reflectorless measurement range - 350m
• Measuring time - 1.5s
• Dual axis compensator
• Communication via RS232, SD card, micro USB, Bluetooth
• Internal memory up to 20,000 points
• ASCII data format
• B/W display - 280 x 160 pixels
• Laser plummet 4 brightness levels
• Rechargeable Li-Ion battery
• Operating time 16hrs
• Operating temperature: -20degC to +50degC
• Storage temperature: -40degC to +70degC

Zoom10 Package:



TPS Family Brochure     Zoom10 Datasheet
