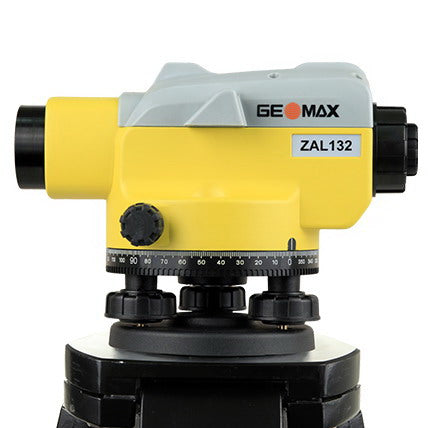

ZAL100 Series Automatic levels
Visit our Download page for product brochures and technical specs.
Click here for Downloads
Couldn't load pickup availability
Have a question? Need more information?
Send a message via the Contact Page
or give us a call on +44 (0)28 9262 9695
The GeoMax ZAL100 automatic level series is dependable, durable and economically designed for daily leveling tasks on the construction site. With three different types of magnification, a new solid-built design and IP54 protection, with a full range of accessories and services, these GeoMax automatic levels provide great quality at affordable value.
ZAL100 levels are suitable for both interior and exterior site leveling.
- Two different magnifications; ZAL124 with 24x magnification, ZAL132 with 32x magnification
- Reference circle for horizontal angle measurements.
- Stadia lines for optical distance measurement and simple terrain surveys.
- Stakeout heights.
- Automatic compensation by air-damped compensator.
| Magnification |
ZAL124: 24x / ZAL132: 32x |
|---|---|
| Fild of view |
< 2.1m at 100m |
| Compensator |
air-damped |
| Circle Graduation / Interval |
360° / 1° |
| Accuracy / 1km double run |
ZAL124: 2mm / ZAL132: 2mm |
| Working range |
±15‘ |
| Multiplicat. / Additive const. |
100 / 0 |
| Stadia lines |
yes |
| Shortest target distance |
< 1m |
| Circular vial |
8‘ / 2mm |
| Weight |
1,500g |
| Protection |
IP54 |
| Working Temp. |
-20°C to +40°C |
