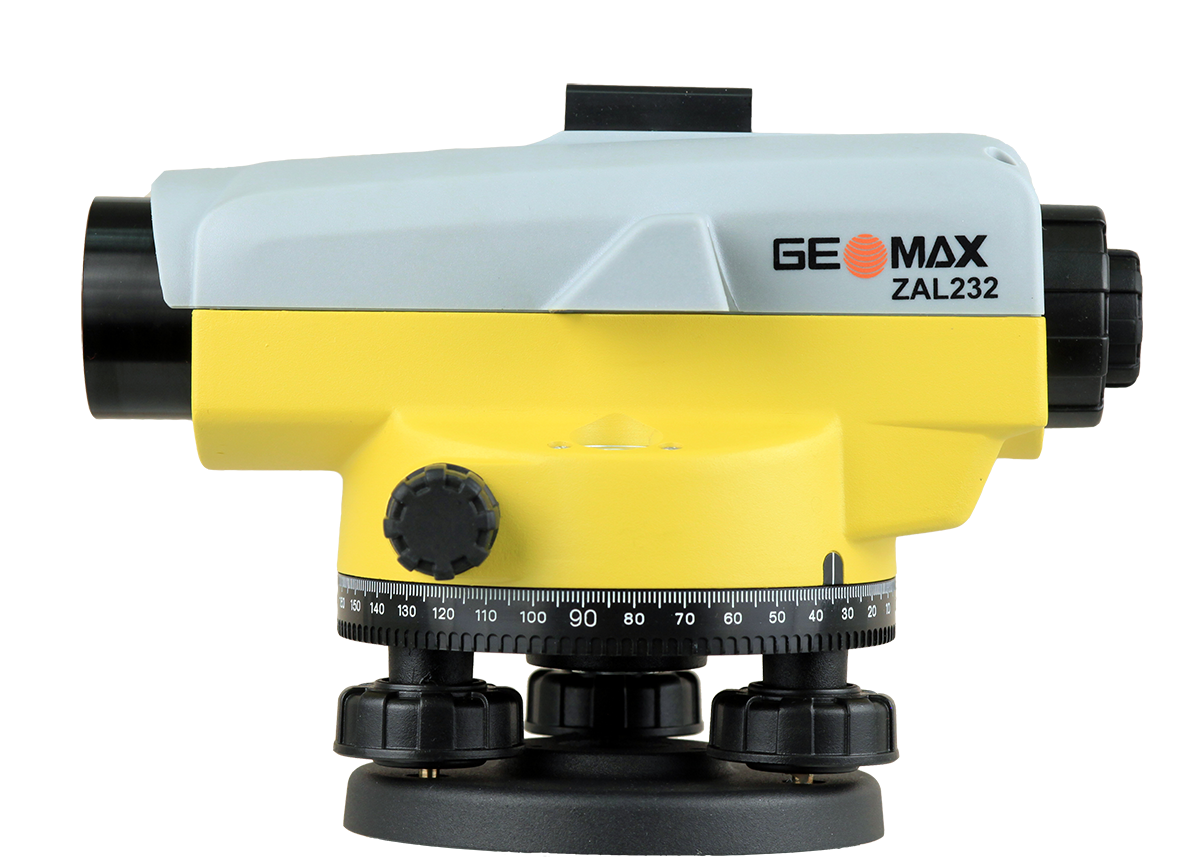

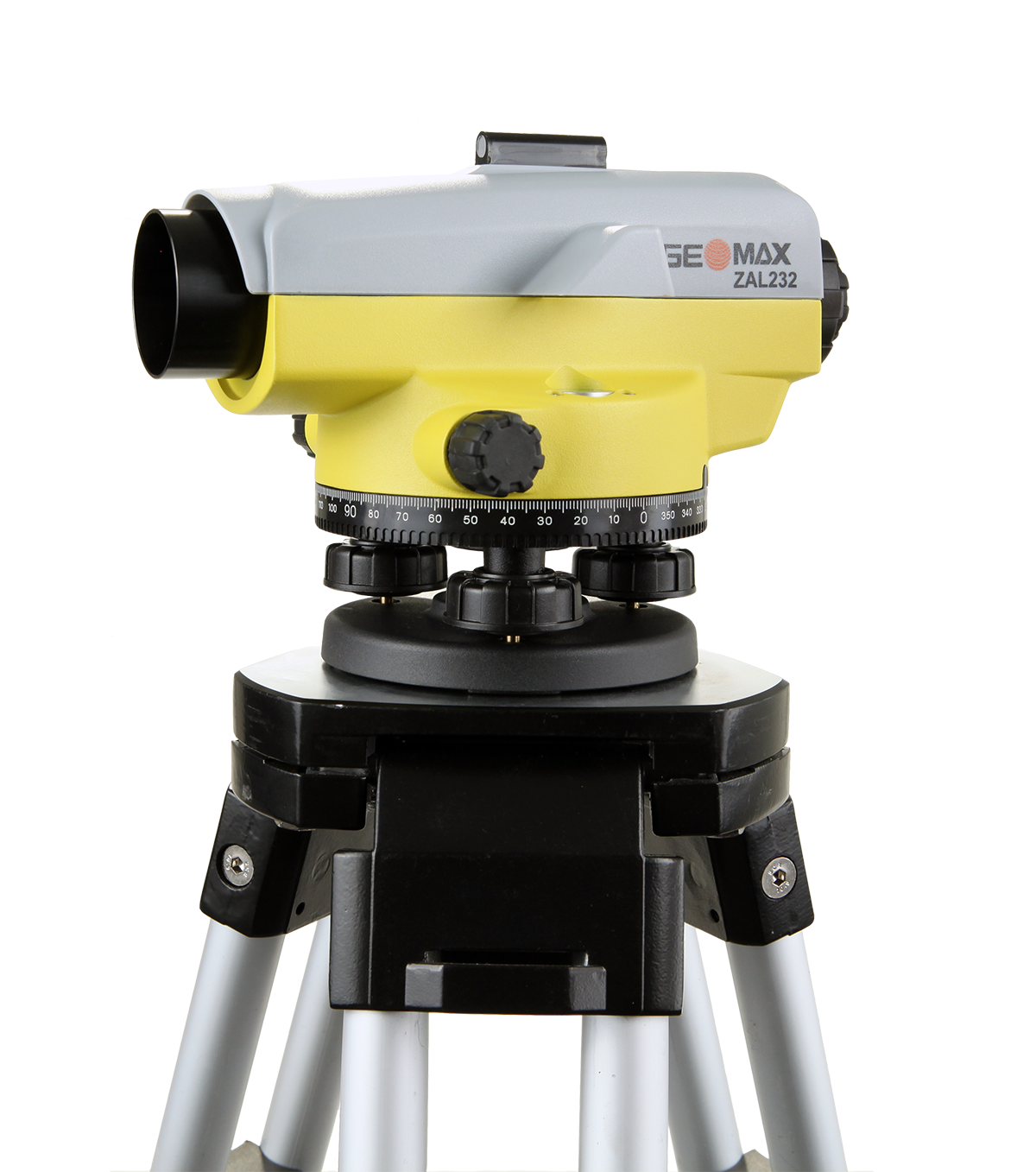

ZAL200 Series Automatic Level
Regular price
£205.00
Visit our Download page for product brochures and technical specs.
Click here for Downloads
Couldn't load pickup availability
Have a question? Need more information?
Send a message via the Contact Page
or give us a call on +44 (0)28 9262 9695
Construction Level
ZAL200 series levels are suitable for easy levelling on all interior and exterior sites.
- The ZAL200 series is substantially similar to the ZAL100 series.
- ZAL200 instruments have a higher water protection class, IP56, and the best air-damped compensator in its instrument class.
- Three different magnifications.
- Reference circle for horizontal angle measurements.
- Stadia lines for optical distance measurement and simple terrain surveys.
- Stakeout heights.
- Automatic compensation via air-damped compensator.
- ZAL220 with 20x magnification
- ZAL232 with 32x magnification
| Magnification |
ZAL220 - 20x, ZAL232 - 32x |
|---|---|
| Fild of view |
< 2.1m at 100m |
| Compensator |
air-damped |
| Circle Graduation / Interval |
360° / 1° |
| Accuracy / 1km double run |
ZAL220-2.5mm, ZAL232-1.9mm |
| Working range |
± 15‘ |
| Multiplicat. / Additive const. |
100 / 0 |
| Stadia lines |
yes |
| Shortest target distance |
< 1m |
| Circular vial |
8‘ / 2mm |
| Weight |
1,500g |
| Protection |
IP56 |
| Working Temp. |
-20°C to +40°C |
