GeoMax Zone20 H Laser

SKU: 6010633
Regular price £635.00
Options
Accessories

Visit our Download page for product brochures and technical specs.

Click here for Downloads

Have a question? Need more information?

Send a message via the Contact Page

or give us a call on +44 (0)28 9262 9695

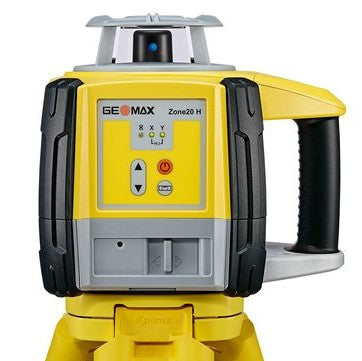

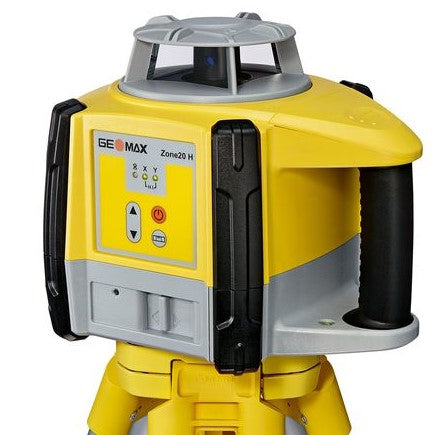

The GeoMax Zone20 H is an economic and firm entry level rotating laser. With a solid-built housing and a straightforward interface, this laser offers all functions needed for regular and flexible use. Zone20 H is an automatic horizontal laser that allows grade setting manually in two axes. It is easy to use and highly reliable in any element.

Tough and simple to use

The Zone20 H complies with the IP67 class of water and dust protection due to its solid-built housing as well as the glass cage. The rubber moulded handles and bumpers provide great protection and easy grip. With its unique Li-Ion battery concept, the laser has 300 per cent greater lifetime than with NiMh batteries. It is fully charged in five hours only, which keeps the laser’s downtime to a minimum. With only four buttons, as well as an informative LED-indication on the laser, the device is very simple and easy to use for everybody. Battery and tool status are easily accessed.

Reliable operation

The Zone20 H is the ideal product for outside applications, such as checking concrete height as well as formwork. The manual grade function contractors can set simple slopes for driveways or landscaping.

Specification:

Tolerance

 ±0.75mm at 10m

Working range with receiver

 Ø900m

Laser diode

 635nm visible (red), class 1

Self-levelling range

 ±6°

Manual inclination range

 8%

Temperature range

 -10°C to +50°C

Power supply

 4 alkaline D-cell (D), Lithium Ion (Li-Ion-Pack)  rechargeable

Operating time

 >40 hours

Dimensions

 240 x 215 x 215mm

Weight

 3,060g

Protection class

 IP67

Tilt warning

 Yes
