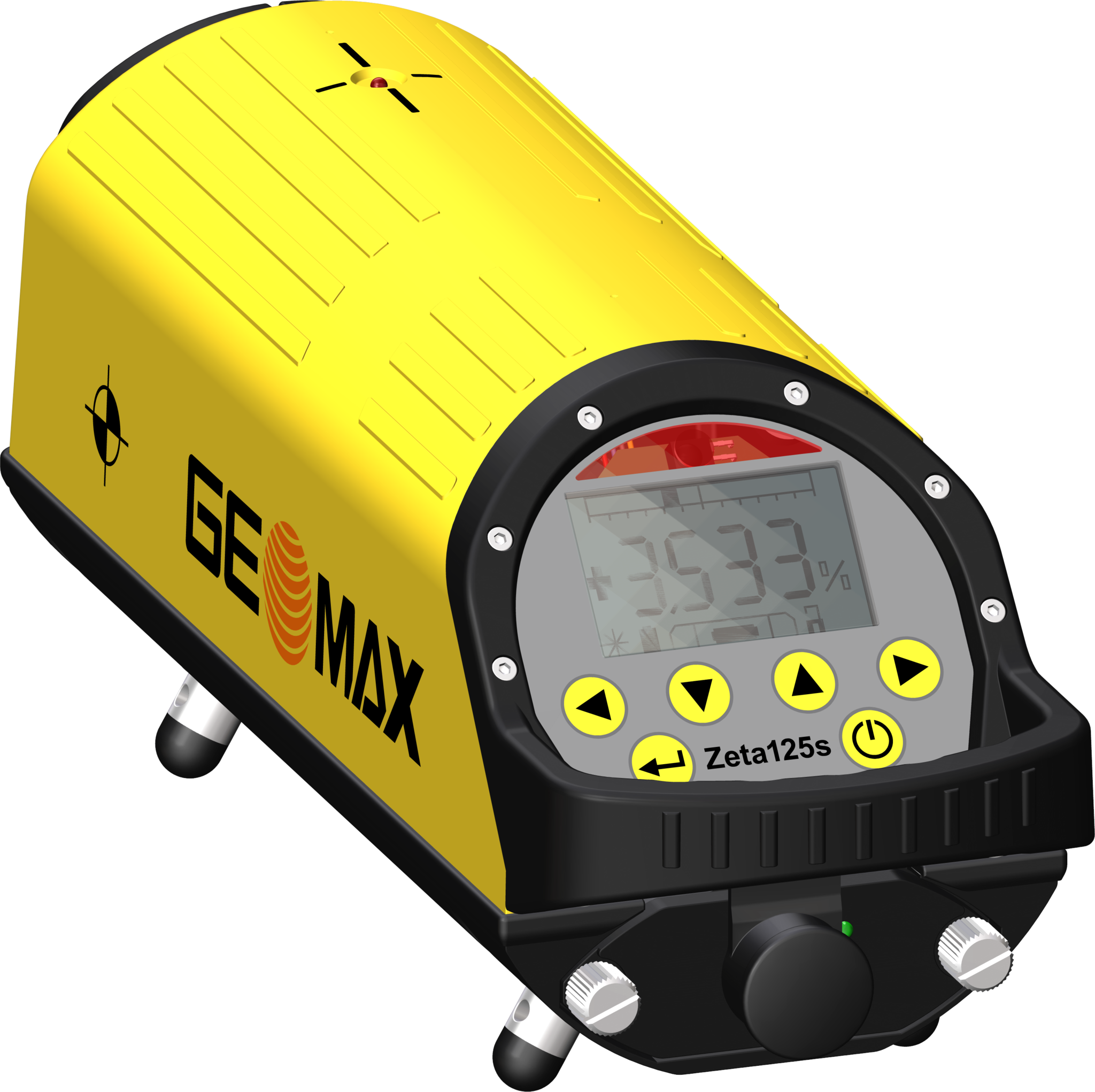

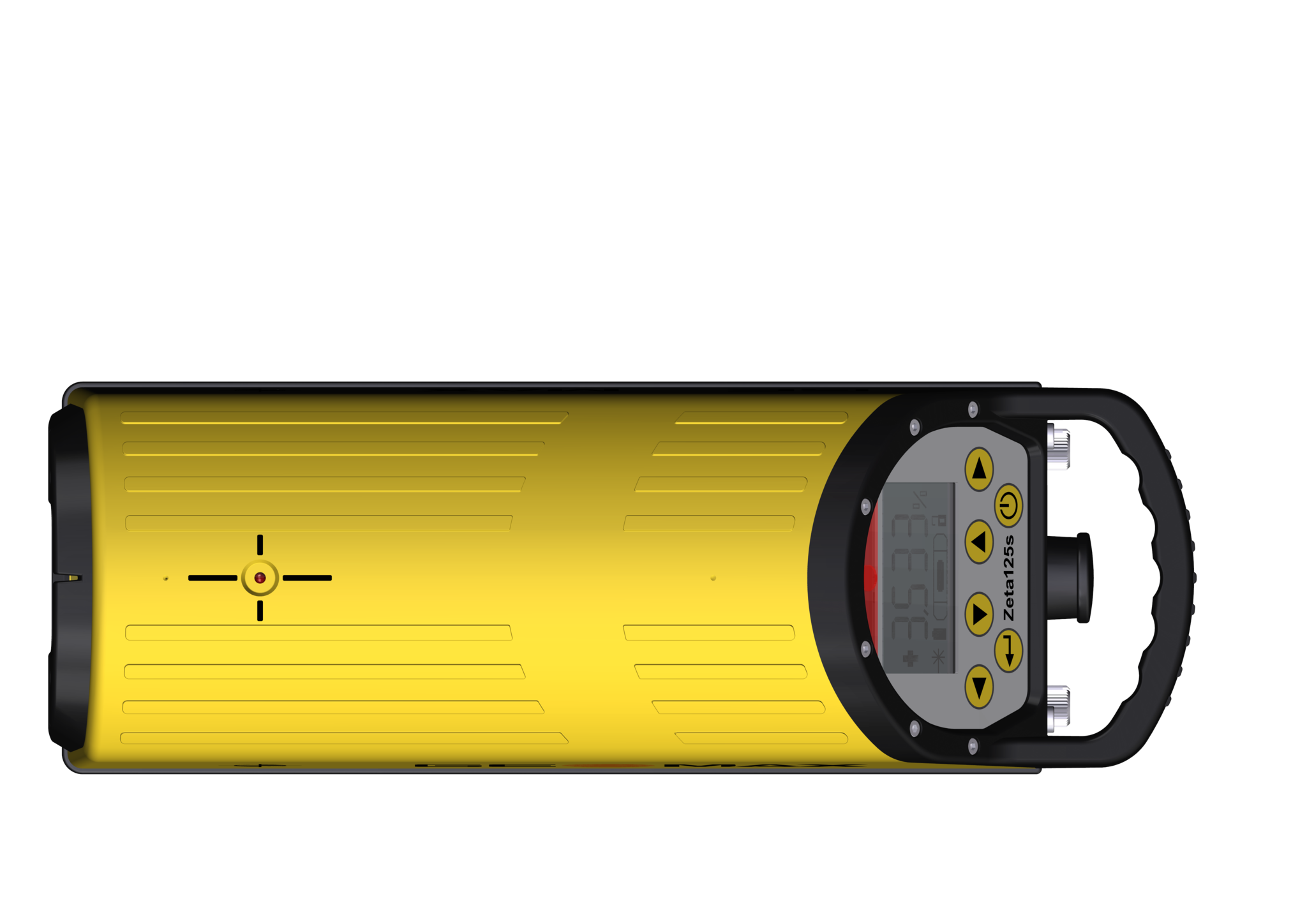

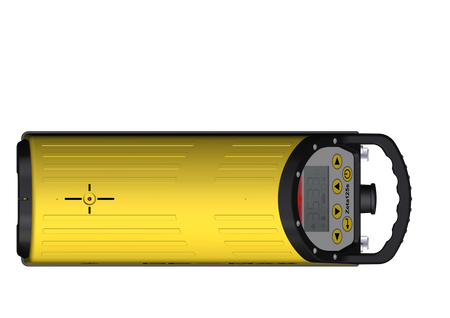

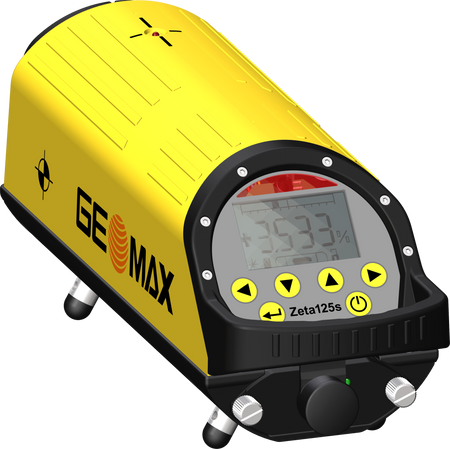

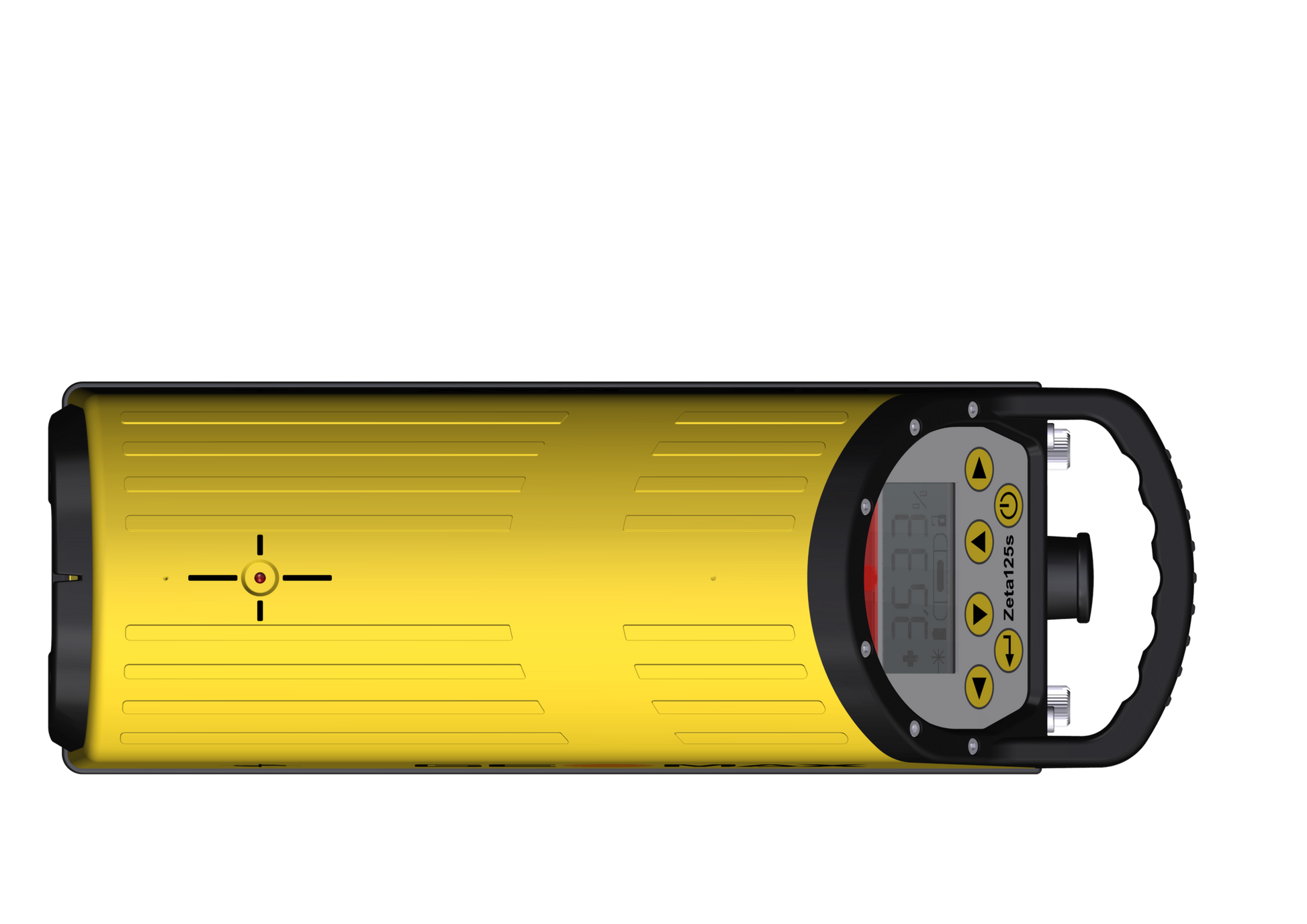

GeoMax Zeta125 Standard Pipelaser
Visit our Download page for product brochures and technical specs.
Click here for Downloads
Couldn't load pickup availability
Have a question? Need more information?
Send a message via the Contact Page
or give us a call on +44 (0)28 9262 9695
Maximum Productivity - Maximum Robustness - Maximum Flexibility

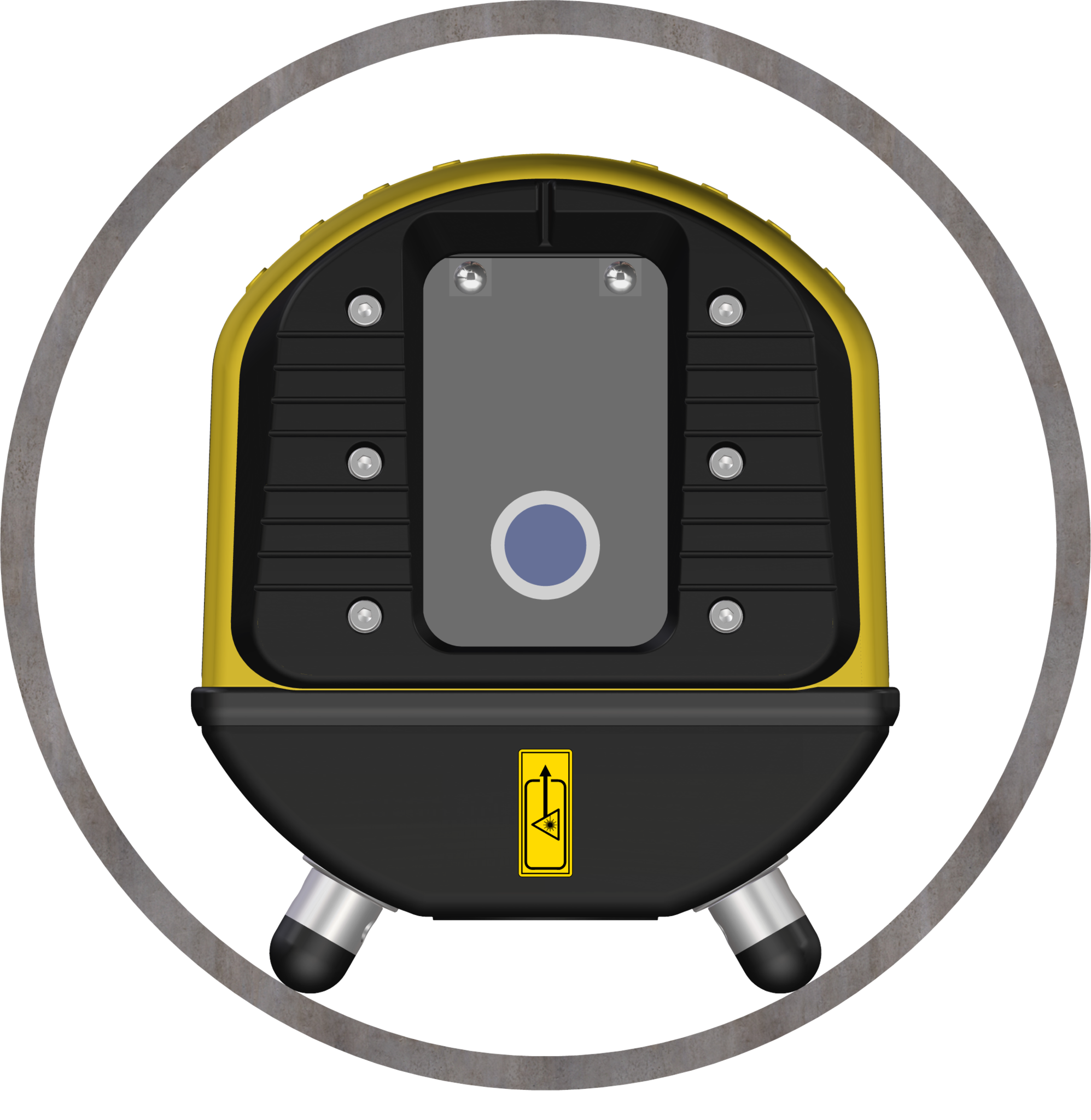

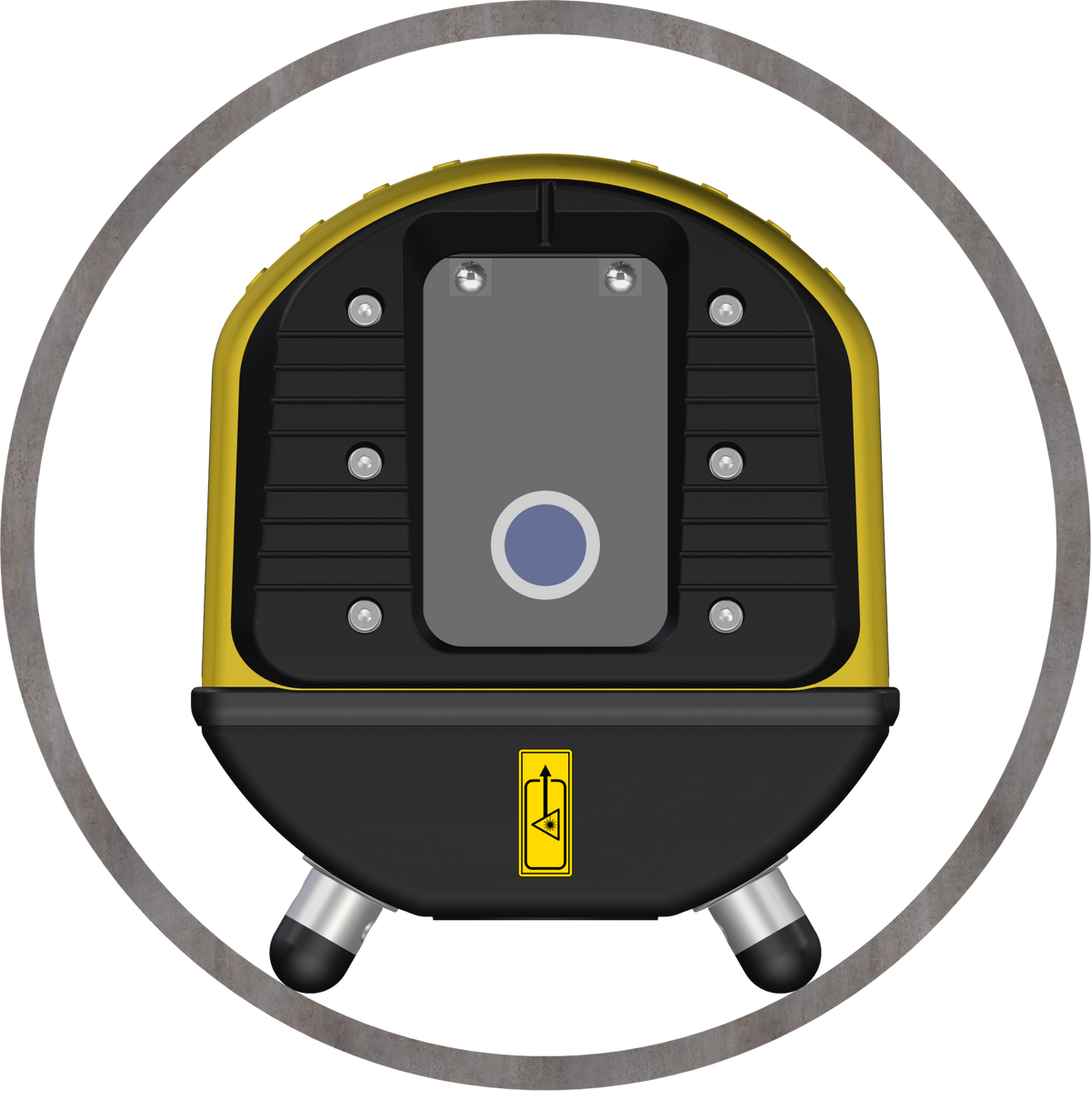

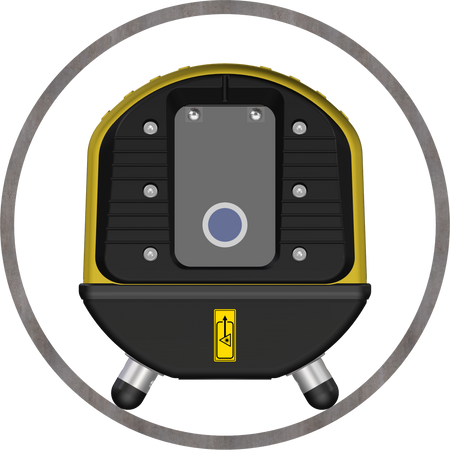

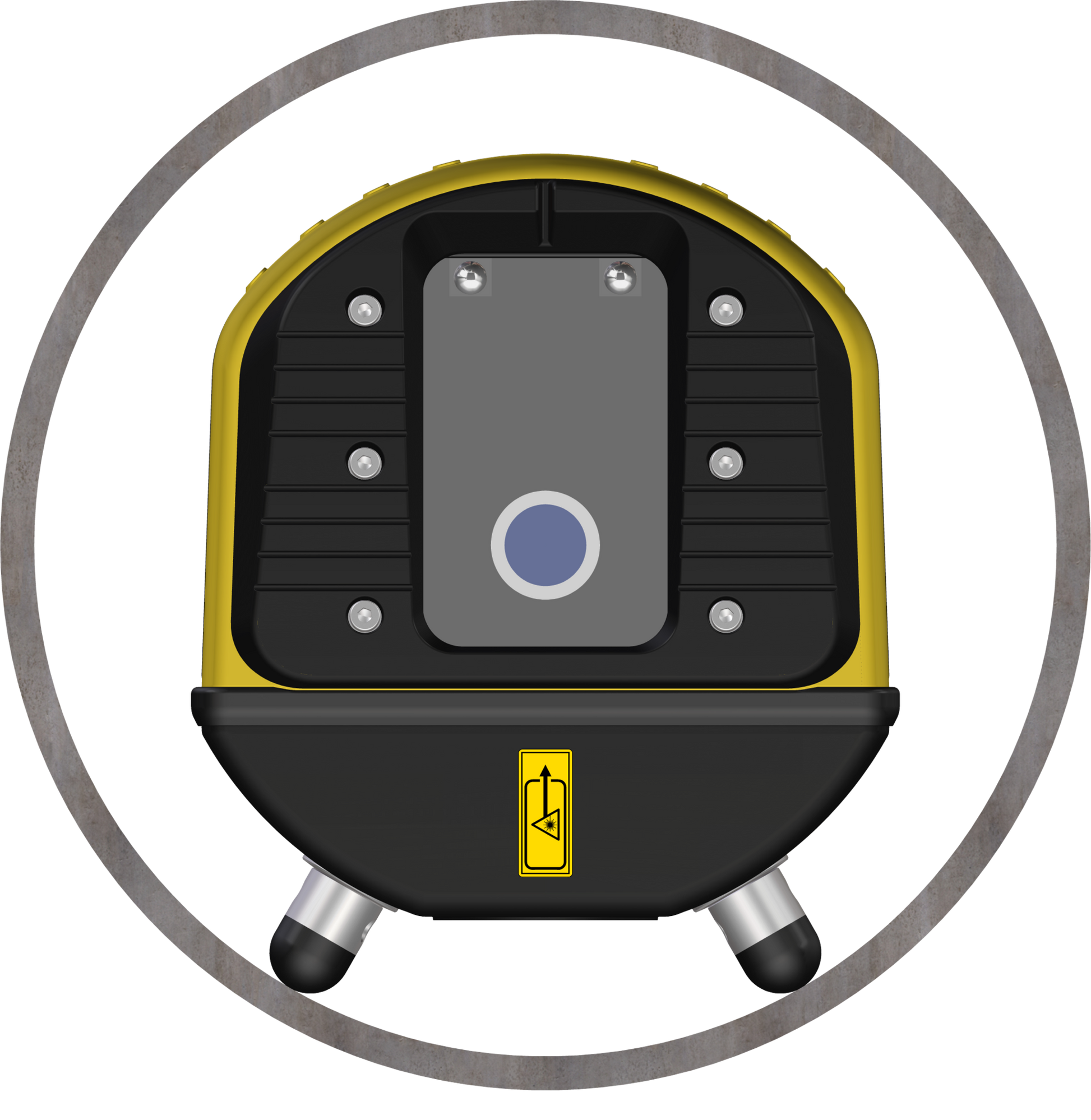

The GeoMax Zeta125's fast self-levelling, automatic alignment and cross axis compensation aid maximum productivity. Its robustness, including IP68 submerge proof rating a full metal housing also means the Zeta125 is ready for all site conditions and challenges. The Zeta125 can be used in 125mm (5") diameter pipes has long range distance remote control, versatile charging options plus a wide range of accessories.
There are two versions of the GeoMax Zeta125 Pipelaser - the standard Zeta125 and the Zeta125S auto alignment.
Features of the Standard Zeta125
- Fast self-levelling
- Cross axis compensation
- IP68 submerge proof
- Full metal housing
- Long range remote control
- Safe and versatile charging options
Specification
| Self-levelling range | +45% to -15% |
| Grade range | +40% to -10% |
| Grade display (dec. pl.) | 0.001% |
| Accuracy | +/-5mm at 100m (+/- .005%) |
| Beam type/Output | Visible red laser; 635nm; Class 3R |
| Protection class | IP68 |
| Power supply |
Rechargeable lithium ion battery pack 110/230V AC convertor (charge & run same time) 12V power cord |
| Battery life |
40hr Li-Ion battery |
| Remote control range |
190m through pipe, 7.6m from rear |
What's included
Zeta125 Pipelaser (829478)
Universal target (821877)
Li-Ion battery
International charger
Remote control
Leg set (150mmx4)
User manual
Carry case
