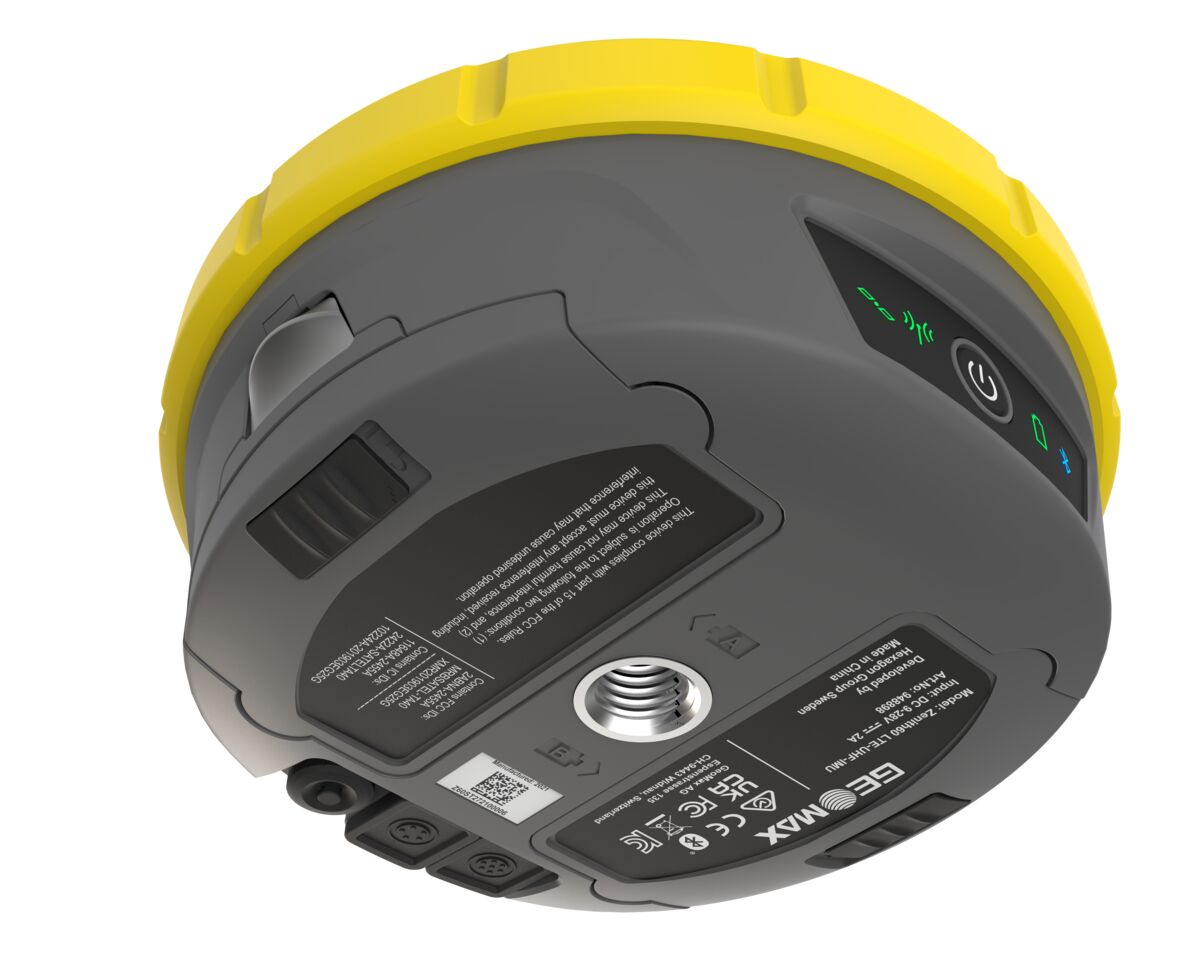

GeoMax Zenith 60 PRO GNSS Receiver
Couldn't load pickup availability
Visit our Download page for product brochures and technical specs.
Click here for Downloads
Have a question? Need more information?
Send a message via the Contact Page
or give us a call on +44 (0)28 9262 9695
The advanced Zenith60 Pro GNSS smart antenna ensures precise, accurate, and hassle-free measurements. Whether working under dense canopy, in urban canyons, or on construction sites, this high-performing RTK rover provides reliable data in challenging conditions. Integrated into the world of GeoMax X-PAD software keeps you covered with intuitive workflows and easy data exchange from measuring to processing to help you get maximum results in minimum time.
Seamlessly integrated into your workflow
X-PAD Ultimate, the dedicated GeoMax field software, convinces with a perfect balance between clear structure, straight forward workflows and high functionality. Through close cooperation with key-users, it is always kept up to date.
The GeoMax software offering is completed by X-PAD Fusion. X-PAD Fusion has the versatility and flexibility to fuse all data types from both GeoMax sensors and other 3rd party sources such as drones.
Affordable price
Providing top-performing technology at an affordable price, the Zenith60 PRO GNSS receiver convinces with a remarkable performance ratio.
Zenith60 PRO technical highlights
-
Calibration free IMU technology incorporated
-
Resistant to electromagnetic fields
-
Tilt up to 60 degrees
-
Magnesium housing
-
4G/LTE support
-
Hot swappable batteries
-
Increased operating time
-
L-band: Terrastar-C Pro correction service
-
Improved initialisation time
-
Reliability 99.99%
-
No extra GSM antenna is necessary
-
QR Code supported
-
High quality components from strong and well-known suppliers and partners: Hexagon, Novatel, Lemo, SATEL

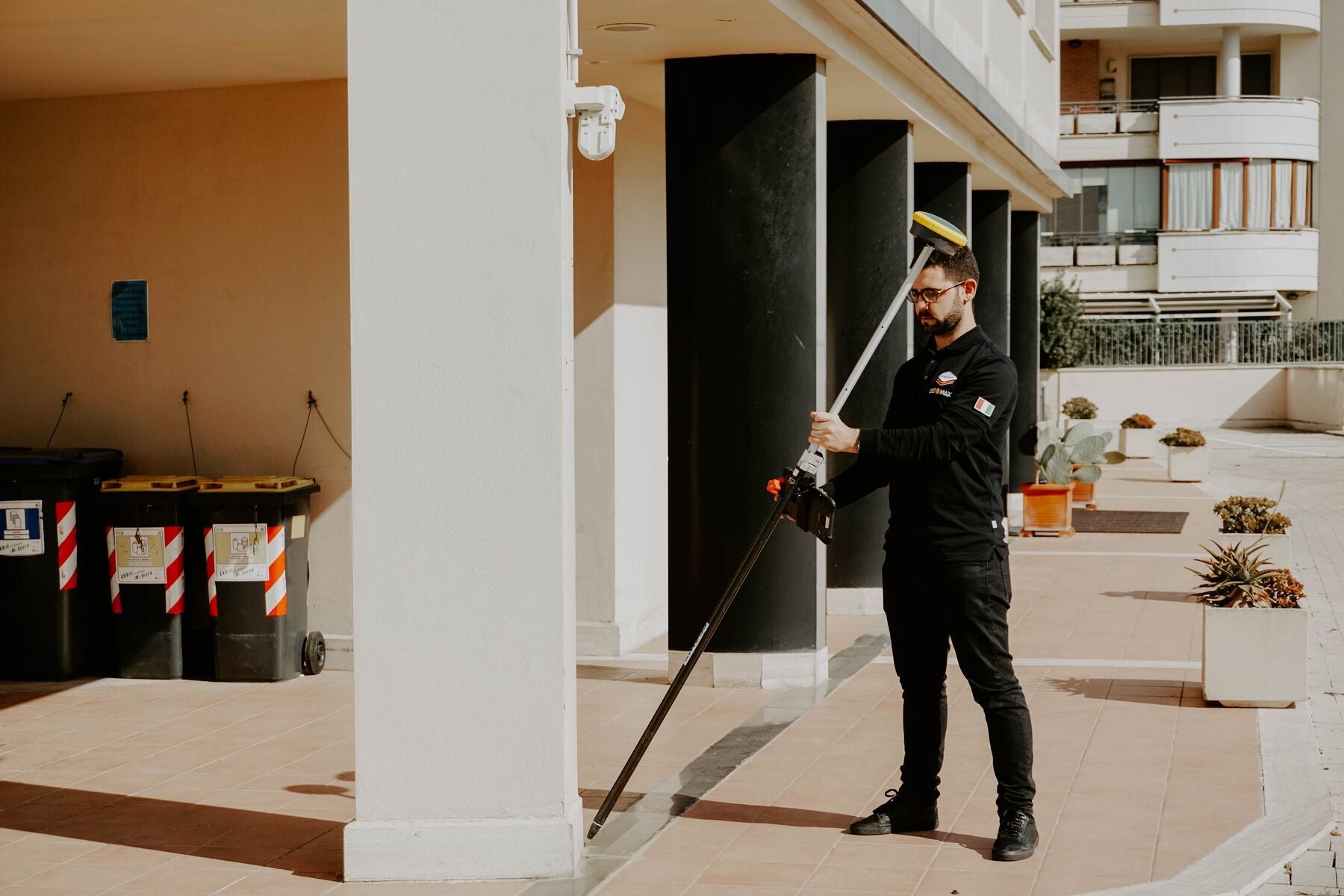

Advantages of IMU technology
-
NO need to calibrate the sensor
-
The pole can be tilted up to 60°
-
Powered by NovAtel and Hexagon technology
Controller Options
Zenius 800 Tablet with X-Pad Software
- GeoMax Zenius800 Android Tablet
- ZHR800 Pole Holder Kit for Zenius800 Tablet on telescopic pole
- X-PAD ULTIMATE SURVEY BASE
- X-Pad Ultimate Survey GNSS
- X-PAD Ultimate Survey GIS
- Geomax ZPC200 Telescopic Carbon/Alum Pole - 2.5m
Zenius 08 Tablet with X-Pad Software
- GeoMax Zenius 08 Android Tablet
- ZHR08 Pole Holder Kit for Zenius08 Tablet on telescopic pole
- X-PAD ULTIMATE SURVEY BASE
- X-Pad Ultimate Survey GNSS
- X-PAD Ultimate Survey GIS
- Geomax ZPC200 Telescopic Carbon/Alum Pole - 2.5m
